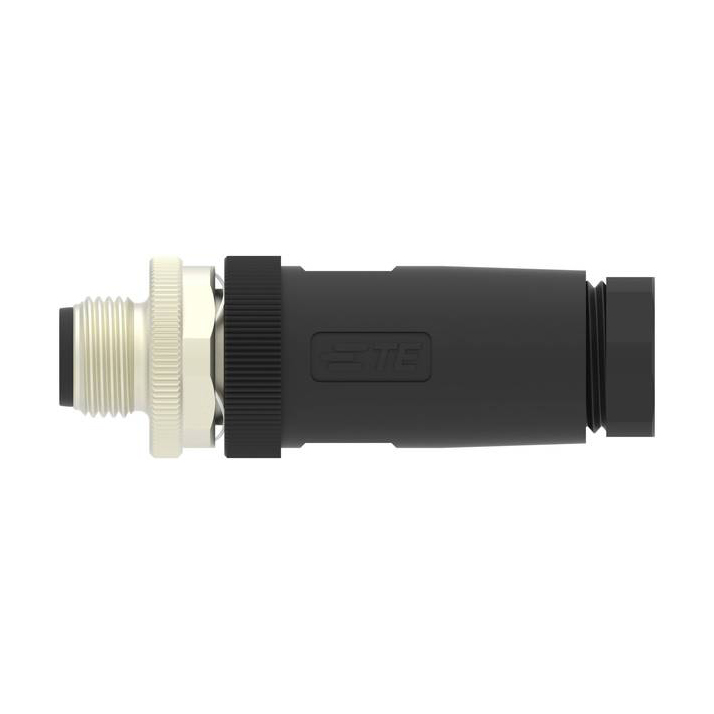

TE Connectivity M12 Connector 5-Polig Male

Product Type Features
Assembly Type : Electrical Connector
Product Type : Connector
Connector System : Wire-to-Wire
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Shell Size : 20
Shielded : No
Connector Style : Plug
Shell Type : Plastic
Accessory Color : Black
Prewired : No

Configuration Features
Number of Positions : 5
Number of Power Positions : 0
Number of Signal Positions : 5
Preloaded : Yes
Keying : A
Factory Installed Backshell : No

Electrical Characteristics
Operating Voltage (VAC): 60
Operating Voltage (VDC): 60

Body Features
Shell Material : PBT
Insulation Material : Polyamide 66 GF25
Environmental Protection Type : Elastomer Sealed
O-Ring Material : Silicone
Environmental Protection : IP67
Peripheral Seal Material : Silicone

Contact Features
Contact Current Rating (Max) (A): 4
Reverse Gender : Standard
Contact Type : Male Contact

Mechanical Attachment
Polarization Code : A
Mating Alignment Type : Keyed
Mating Alignment : With
Flange : Without
Mating Retention Type : Threaded Coupling

Dimensions
Wire Size (AWG): 18 – 24
Wire Size (mm²): .82 – .2

Usage Conditions
Operating Temperature Range (°C): -40 – 85, -40 – 85
Operating Temperature Range (°F): -104 – 185
IP Water Sealing Level : IP67
IP Dust Sealing Level : 6

Operation/Application
Circuit Application : Signal
Durability Rating (Cycles): 100
Packaging Features

Other
 Field Serviceable : Yes

Packaging Quantity : 1
